Concrete Floor Thickness Requirements for Car Hoist Setup

Crucial Considerations for Successfully Installing a Car Hoist in Your Garage

Before proceeding with the installation of a car hoist in your garage, it is imperative to ensure that your concrete floor meets the required specifications. A robust and stable foundation is essential not only for the efficient operation of the hoist but also for the safety of your vehicles and the individuals operating the equipment. By following proper preparation protocols and adhering to industry guidelines, you can significantly improve both the performance and longevity of your hoist while minimising potential hazards.

Most car hoists necessitate a concrete slab that is a minimum of 100mm (4 inches) thick. This specific thickness is critical as it facilitates the even distribution of weight from both the vehicle and the hoist, thereby reducing the risk of cracking or sinking over time. For heavier-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal performance and enhanced safety during operation.

Comprehensive Steps for Determining the Optimal Concrete Thickness for Your Car Hoist Installation

The thickness of your concrete floor is a vital factor in the safe installation and functioning of a car hoist. There are multiple considerations to take into account when evaluating the appropriate depth for your slab to ensure it can adequately support the loads it will endure during usage. Gaining a thorough understanding of these factors can help you avoid costly errors and significantly improve the safety of your garage setup.

Evaluating Load Capacity to Ensure Safe Installation of Your Car Hoist

Car hoists place substantial stress on the concrete floor beneath them. Therefore, it is crucial to grasp the total weight that your concrete floor needs to bear. This assessment includes not only the weight of the vehicle but also the weight of the hoist itself, which can considerably add to the overall load on the floor.

A typical passenger vehicle weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Moreover, it is wise to include extra weight as a safety margin to ensure the structure can adequately handle unforeseen circumstances or variations in load.

For the majority of home garages, a concrete thickness of between 100 mm and 150 mm is generally sufficient. However, should you plan to lift significantly heavier vehicles, it may be prudent to consider a thicker slab to ensure safety and stability during operation.

Engaging a structural engineer is a sound decision. Their expertise allows them to provide tailored advice and assist you in calculating the precise thickness needed, based on the unique conditions and requirements of your installation.

Understanding Different Types of Car Hoists and Their Concrete Thickness Specifications

It is essential to recognise that various types of car hoists come with specific requirements concerning concrete thickness. Two-post lifts and four-post lifts are two of the most popular options among homeowners aiming to incorporate a car hoist into their garage.

Two-post lifts exert pressure on particular points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated weight.

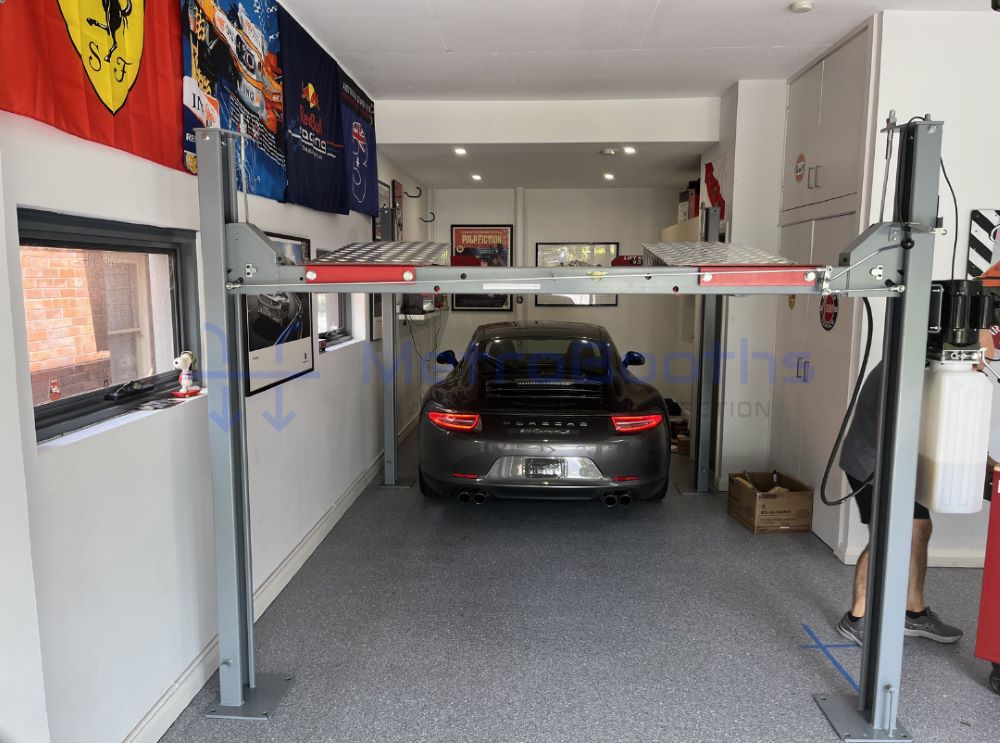

In contrast, four-post lifts distribute weight more evenly over a broader area, permitting their functionality with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is crucial for effective planning and execution of your installation.

Always refer to the manufacturer's specifications for the hoist you are considering, as they typically outline the minimum concrete thickness required for safe and effective operation. Adhering to these guidelines is vital to ensure optimal performance and longevity of your hoist.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you intend to lift.

The Significance of Concrete Strength and Reinforcement Techniques in Hoist Installation

The strength of your concrete is just as important as its thickness. High-quality concrete can often be effectively utilised at a thinner depth, while still offering adequate support for heavy loads. This is particularly relevant in the context of a car hoist installation.

It is advisable to use concrete with a compressive strength of at least 25 MPa for any car hoist installation. Many industry professionals recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty usage and frequent vehicle lifting.

Incorporating reinforcement techniques plays a critical role in significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could allow you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation.

For the majority of home garages, SL82 mesh is a dependable option. It provides sufficient strength for most car hoists without incurring excessive costs. This consideration is essential for homeowners who are budget-conscious.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the development and propagation of small cracks over time, thus enhancing the longevity of your installation.

Essential Installation Factors to Ensure Successful Operation of Your Car Hoist

When it comes to installing a car hoist, meticulous site preparation and consistent maintenance of the floor are of utmost importance. By paying careful attention to the specifications of the concrete and ensuring proper care of the floor, you can guarantee the safe and long-lasting operation of your hoist, ultimately safeguarding your investment.

Critical Site Preparation and Concrete Pouring Techniques for Effective Car Hoist Installation

Prior to installing your car hoist, it is imperative to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is a minimum of 100mm thick, constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is vital to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist, providing adequate support and stability.

Avoid positioning the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition.

Ongoing Maintenance Requirements After Installing Your Car Hoist

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or indications of stress, and address any issues promptly to prevent larger complications that could compromise the functionality of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to significant structural issues. Additionally, consider using protective mats beneath the lift arms to minimise wear and tear on the floor, thereby extending its lifespan.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can greatly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment.

Commonly Asked Questions Regarding Car Hoist Installation and Concrete Specifications

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts.

What is the recommended minimum concrete thickness for a two-post lift installation?

For a two-post lift, the advised minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always refer to the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation.

What specifications must a concrete slab fulfil for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are prone to cracking or failing under the weight of the hoist and vehicles, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This thickness range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What factors should be evaluated when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following essential factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used alongside the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency.
