Clay Soil’s Impact on Caboolture Pipes Uncovered

If you reside in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have observed damp patches, areas of subsidence, ongoing drainage issues, or fissures in your concrete slabs, you may be concerned that reactive clay soil is adversely affecting your underground plumbing.

The terrain of Caboolture is primarily comprised of reactive clay, which expands upon absorbing moisture and contracts during dry spells, sometimes by as much as 20% or more. This cyclical behaviour places significant stress on underground pipes when the soil is saturated, leaving them unsupported once it dries out. Older clay sewer and galvanised water pipes are particularly susceptible to damage. Conducting a camera inspection can facilitate early identification of issues, while pipe relining often provides a solution without necessitating extensive yard excavation.

In Caboolture, your underground plumbing continuously confronts challenges posed by the surrounding soil conditions.

Over time, this persistent struggle can result in considerable damage to the pipes. By the time visible indicators emerge, the underlying problems may have been developing for an extensive period.

How Does the Behaviour of Clay Soil Contribute to Damage in Underground Pipes?

Four key phases contribute to the deterioration of pipes: the wet swelling phase (compression), the dry shrinking phase (loss of support), the ongoing stress from these cycles, and the typical drought-to-flood transitions experienced in Southeast Queensland. Each of these stages exacerbates existing cracks and misaligns pipe joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and expand, exerting crushing pressure on pipes from all directions. This can force joints together or separate them. Rigid pipe materials are particularly vulnerable to cracking under such immense pressure.
• The dry phase: Once the rain ceases and the clay dries, it contracts and pulls away from the pipes. This leads to voids and gaps, resulting in sagging, bending at joints, and the formation of bellies where water and sediment can accumulate.
• The repeat cycle: This expansion and contraction occurs repeatedly throughout the year in Caboolture's climate. Each cycle intensifies stress on the pipes and gradually worsens any pre-existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry and wet seasons. Following an extended dry spell, the clay shrinks significantly. When heavy rain arrives, the soil expands rapidly, applying sudden and extreme pressure on pipes that may be resting in loose, cracked ground.

Which Types of Pipes Are Most Susceptible to Damage?

Older clay sewer pipes (found in homes built before the 1970s), galvanised steel water mains (in homes constructed before 1985), and concrete stormwater pipes are particularly at risk. While modern PVC pipes generally perform better, inadequate backfill can still lead to joint separation. Copper pipes, although flexible, may develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially those in homes built before the 1970s in Caboolture, are among the first to fail. Their brittle and heavy construction, often joined with mortar, makes them prone to cracking.
• Galvanised steel pipes: These pipes, utilised for water supply in homes built prior to 1985, are already compromised due to internal corrosion and are prone to cracking as the surrounding clay soil shifts.
• Concrete stormwater pipes: Although older stormwater systems can withstand compression relatively well, they often crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility, but significant ground movement can still lead to joint separation. Poor backfill during installation can increase the vulnerability of PVC pipes.
• Copper pipes: Common in newer homes, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points from repeated bending stress.

What Symptoms Indicate Damage in Underground Pipes?

Stay vigilant for damp patches during dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your garden, unusually lush green patches of grass, trees with roots growing into specific areas, and cracks in your concrete slab. If you observe two or more of these symptoms, arrange for a camera inspection without delay.

• Damp patches in the garden during dry conditions—this may signify water leaking from a broken pipe, saturating the soil above.
• Sinkholes or soft spots—these develop when soil washes into a broken pipe, creating an underground void.
• Slow drainage or persistent blockages—a cracked, shifted, or bellied pipe can trap debris and roots at damaged locations.
• Foul odours in the garden—a cracked sewer pipe may leak sewage into the surrounding soil.

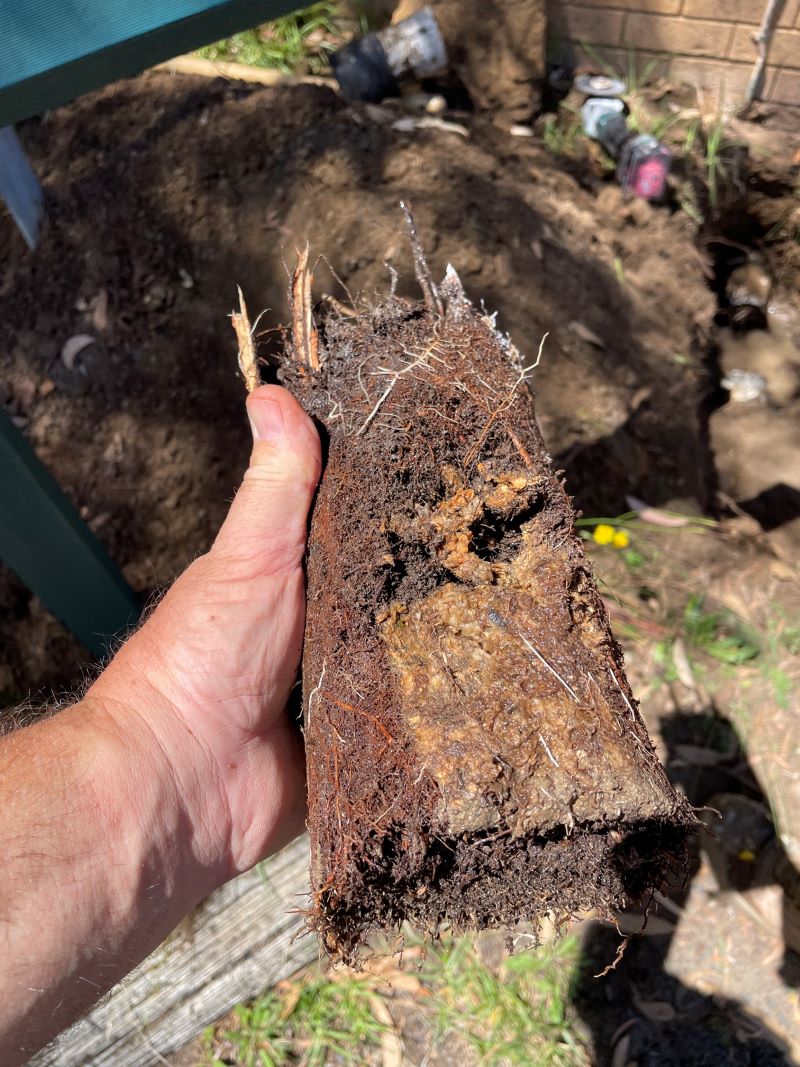

• Tree roots flourishing in a specific area—trees often sense moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

Our Comprehensive Method for Detecting Pipe Damage

We utilise CCTV drain cameras to inspect sewer and stormwater systems, allowing us to visually assess the condition of pipes in real-time. This enables us to identify cracks, root intrusion, misaligned joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection techniques, along with a thorough property assessment to anticipate potential future damage.

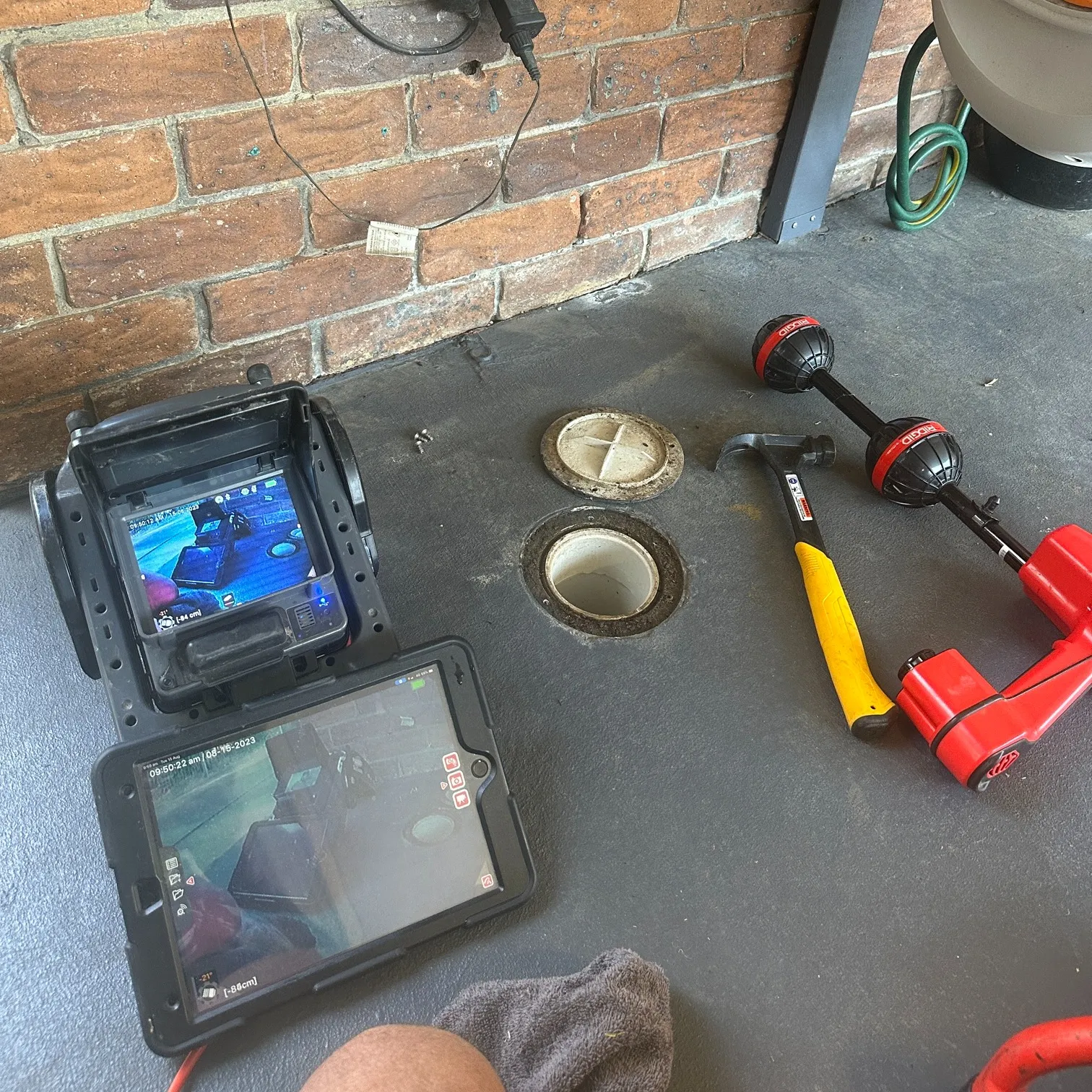

• CCTV drain camera inspection: A camera navigates through the pipe, providing a real-time visual assessment. We can identify cracks, breaks, root intrusions, misaligned joints, sediment accumulation, and collapsed sections.
• Leak detection: To locate leaks in water supply lines, we use advanced acoustic and thermal detection equipment, enabling us to identify issues without the need for excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to gain insights into the causes of damage and predict where future issues may arise.

What Solutions Are Available for Pipe Damage?

Hydro jetting is employed to remove immediate blockages. For cracked or root-invaded pipes, pipe relining is typically the best option—requiring no excavation. Installing French drains and spoon drains can help alleviate future ground movement pressures. Full excavation is only necessary in cases of total pipe collapse.

• Hydro jetting: This technique effectively removes roots, sediment, and debris from damaged pipes, restoring proper flow. It often serves as a preliminary step before camera inspection.
• Pipe relining: This method is ideal for pipes affected by cracks and root intrusion in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution can last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for fully collapsed pipes where relining is not viable. We replace the damaged section with new PVC pipes laid on sand (rather than clay) to mitigate future ground movement issues.

Why Prompt Attention to Pipe Damage Is Essential

Damage to underground pipes in clay soil progressively worsens over time. The situation does not stabilise—it deteriorates. A small crack today could lead to a complete pipe collapse tomorrow. Roots that infiltrate gaps will continue to grow, eventually blocking the pipe entirely.

The most cost-effective repairs are always those addressed early. A camera inspection reveals the exact conditions underground, enabling you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before making a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While it is impossible to completely prevent damage, you can mitigate the risk. Keeping the area around your home consistently watered during dry periods helps reduce shrinkage cycles. Proper tree management can lessen root pressure on pipes. Installing effective drainage systems also aids in decreasing soil saturation. Regular monitoring of pipes in reactive clay soil is crucial—conducting camera inspections can identify issues early.

What Are the Estimated Repair Costs for Pipes Damaged by Clay Soil?

Repair costs vary depending on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at approximately $350. Pipe relining for a damaged section typically ranges from $4,000, while complete excavation and replacement of a collapsed pipe can exceed $8,000, influenced by factors such as depth, length, and accessibility. We provide precise pricing following a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most instances, yes. A relined pipe features a smooth, jointless interior that offers improved flow compared to the original pipe. The resin liner is resistant to root intrusion and corrosion, with a lifespan exceeding 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine if My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the soil's reactive nature.

Who Should Skip Reading This Article?

• If you are located outside the Moreton Bay region—different soil conditions necessitate tailored solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to perform plumbing work yourself—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you are seeking the cheapest quick fix without an inspection—we prioritise thorough assessments; we will not dig without first conducting a camera inspection.
