Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Common Flat Roof Issues for Homes on the Central Coast

While flat roofs may not be the dominant choice in Australia’s roofing landscape, their uptake is increasing among both residential and commercial properties. These roofing types are often seen on patios, carports, walkways, and other areas that require low-pitched designs. When the slope is minimal, flat roofs can also be termed “skillion roofs.”

Flat roofs present a range of benefits but also come with specific challenges that homeowners need to understand. It is essential to be aware of the common issues associated with flat roofing systems and to adopt strategies that can mitigate these challenges, particularly on the <a href="https://limitsofstrategy.com/roof-asbestos-removal-costs-in-central-coast-nsw-explained/">Central Coast</a>, where the coastal climate, heavy rainfall, and salty air can exacerbate roofing concerns.

What Factors Are Driving the Increased Popularity of Flat Roofs Among Homeowners?

Flat roofs are becoming increasingly popular in both residential and commercial building projects for several compelling reasons:

• They are quicker and simpler to install, which facilitates faster project completion
• Their design allows for easier maintenance access, making routine inspections and repairs more straightforward
• They provide excellent platforms for solar panel installations, thus enhancing energy efficiency

The most significant concern with flat roofs is the management of water drainage. Water poses the greatest threat to your roof. When planning a new roof installation or updating an existing one, it is crucial to take into account various factors, particularly rainfall, which can vary considerably across different regions of Australia.

What Are the Primary Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that enable rainwater to drain off rapidly into gutters, flat roofs have a limited slope. This design can lead to water pooling that persists for extended periods. If water is not effectively directed away from the roof, it can result in:

• Surface staining and deterioration of roofing materials
• Structural weakening of roofing components over time
• Accumulation of mould and mildew, which can pose health risks
• Leaks that can penetrate into the building's interior

The solution to these challenges lies in effective roof plumbing and careful design that takes into account the unique requirements of flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Prior to installation, a qualified roofing contractor will evaluate several vital factors that influence drainage efficiency:

• The intensity of local rainfall and prevailing weather patterns
• The overall area of the roof and its precise measurements
• Configurations of gutters and effective drainage outlets
• Specifications for downpipes
• Options for overflow prevention to manage excess water
• Considerations regarding roof pitch to promote efficient drainage

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with less than this gradient can jeopardise waterproofing efforts and may even void product warranties, leading to potentially expensive repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, are not appropriate for very low-pitch applications. For flat roofs, specific roofing profiles designed for effective water shedding are highly recommended to ensure longevity and performance.

Identifying the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Installations

Among the most recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This adaptable profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even with a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent option for low-pitch installations.

Selecting the right roofing profile according to your roof's pitch and local rainfall conditions is essential to ensure the ongoing performance and reliability of your roofing system.

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

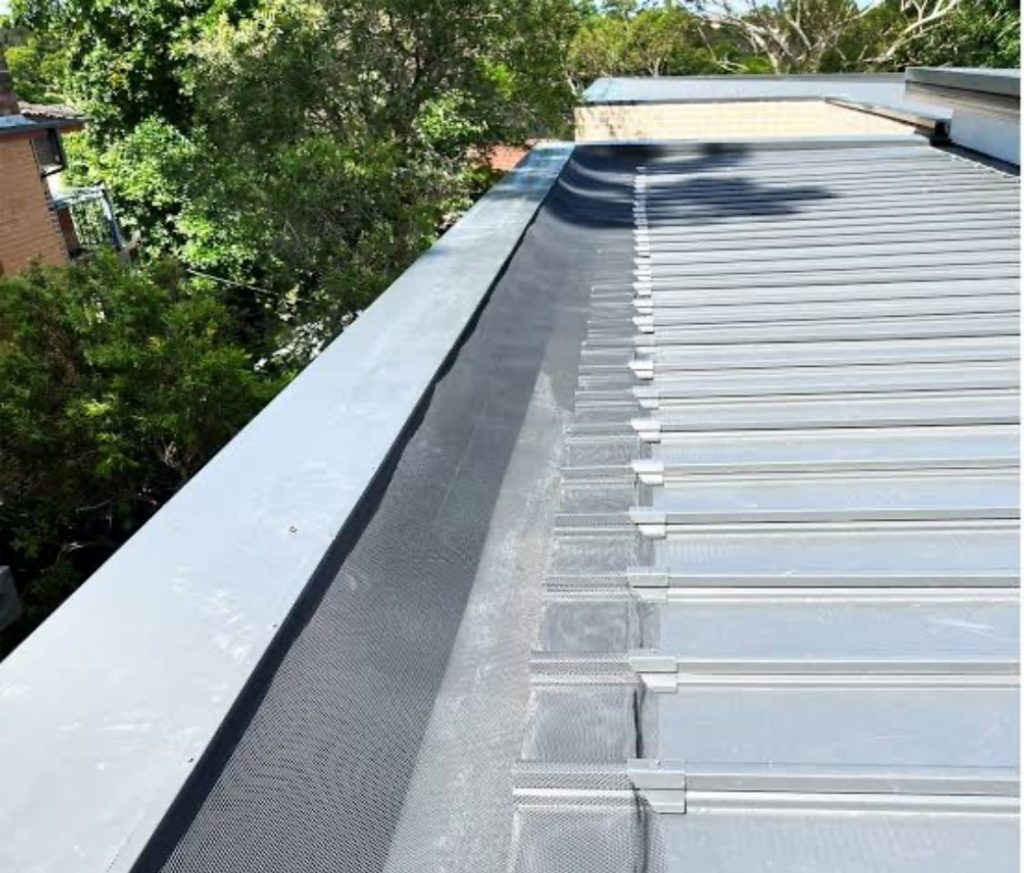

On flat roofs, box gutters are often used to connect roof panels to drainage outlets. Since box gutters are positioned below the roof plane, they require careful detailing and installation to prevent blockages and water back-up issues.

The common challenges associated with box gutters include:

• Accumulation of debris from nearby trees and foliage
• Improper fall or slope that obstructs water flow
• Overflowing back into the roof structure, which can lead to leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with thoughtful gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Key Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately accommodate the water flow requirements of flat roofs. It is often essential to install guttering that is specifically designed to manage larger water capacities. Next, we will examine various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall
• Effectively sweep away debris with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

We highly recommend self-cleaning gutter designs, which are perfect for flat metal roofs while also offering an aesthetically pleasing appearance!

Our preferred choice is a half-round gutter due to its superior water-carrying capacity, which ensures faster drainage. This design effectively removes silt and sludge build-ups with each rainfall, maintaining a cleaner system over time.

For optimal performance on flat roofs, gutters should be sized appropriately based on local rainfall patterns and connected to suitably sized downpipes (for instance, 100mm × 75mm) capable of managing substantial water volumes. In areas with many trees, installing leaf diverters or guards can significantly lessen blockage issues.

How Flashings Are Essential in Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is vital, as water can pool around these joints if not adequately sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra care is required at corners and seams where water may accumulate

By ensuring that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during heavy rainfall. Our team takes special precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Regular Maintenance Is Essential for the Longevity of Flat Roofs

Flat roof systems, particularly those associated with box gutters, require regular inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to guarantee clear drainage
• Checking downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may pool
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can help prevent the need for more extensive repair work in the future, thereby prolonging the life of your roofing system.

Discover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs offer numerous benefits:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can be seamlessly integrated with existing pitched roof structures when drainage and detailing are managed appropriately, thus enhancing the overall functionality and appearance of the building.

How to Guarantee the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in a coastal environment. Whether undertaking a new construction project, extending a patio, or adding a carport, selecting the appropriate roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and prevent more significant problems in the future.

Flat Roofs Frequently Asked Questions: Do Flat Roofs Face More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if not designed properly. Without a sufficient slope, water may pool or leak into the building structure. However, when constructed with the right pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can prove just as resilient as pitched roofs.

What Is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles like Trimdek and Kliplok can operate effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful material selection and detailed guttering strategies to ensure adequate drainage.

Is It Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are well-suited for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters situated below the roof line, often positioned between roof sections or alongside parapet walls. They are commonly utilised on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to prevent blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally necessitate higher-capacity gutters and larger downpipes to ensure effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be advantageous in reducing maintenance requirements.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly and equipped with proper drainage, as well as maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as needed will significantly extend the lifespan and performance of the roof.
